PRODUCT Detail

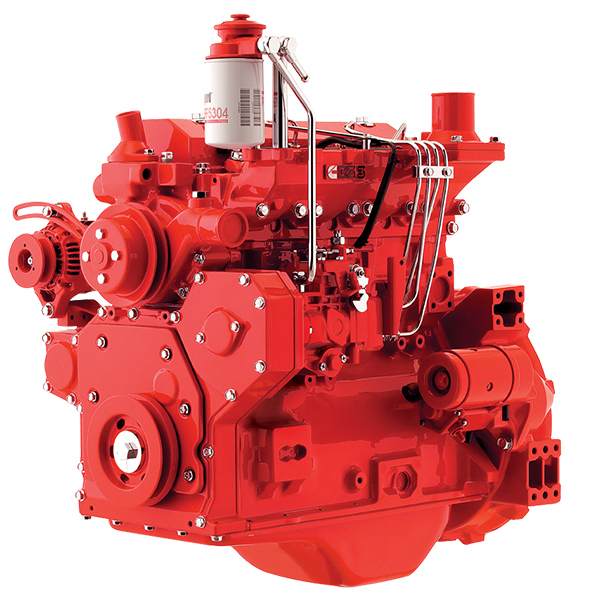

The Cummins B3.3 engine brings toughness and reliability to every piece of equipment it powers, from skid steers to telehandlers, forklifts to road compaction, and compressors to ground support equipment the B3.3 meets all your equipment needs. Its in-line 4-cylinder design has a compact footprint for easy installation. With ratings from 60 hp (45 kW) to 85 hp (63 kW) Cummins in-cylinder solution meets Tier 3 and Stage IIIA emissions or Tier 4 Interim emissions below 75 hp (56 kW) with both naturally aspirated and turbocharged versions that deliver strong performance. Single-sided maintenance is just one of many standard features and options that let you customize your B3.3.
Getting the right combination to match your equipment, operating environment and workloads has never been easier. Cummins Advisor is ready to provide expert assistance with your installation process.
Every B3.3 engine is covered by Cummins three-step warranty, one of the most comprehensive and simplest plans in the industry.
Specifications.
Advertised Horsepower | 60-85 hp | 45-63 kW |
Peak Torque | 158-224 lb-ft | 214-304N•m |
Number of Cylinders | 4 | |
Oil System Capacity (NA) | 8 U.S. qt | 7.5 liters |
Oil System Capacity (Turbo) | 8.5 U.S. qt | 8 liters |
Length | 27.7 in | 703.4 mm |
Width | 22.8 in | 580 mm |
Height | 31.7 in | 804.9 mm |
Wet Weight | 606 lb | 275 kg |
The B3.3 is built to last, with a cast-iron parent bore block designed for durability and reliability. Every element of the design adds value to the customer, including:
- Direct injection for increased fuel efficiency, low heat rejection and quicker starts
- A deep, stiff crankcase with structural ribs for lower noise and increased life
- An isolated valve cover for reduced noise
- Optional intake air heater for cold-weather starting
- Low rotating inertia (30% less than industry average) for reduced vibration
- Left- or right-side service options for easy maintenance
- SAE “A” PTO mounting option with engine-mounted, gear-driven designs (Front-mounted crank PTO generates 100% torque for hydraulic applications)
