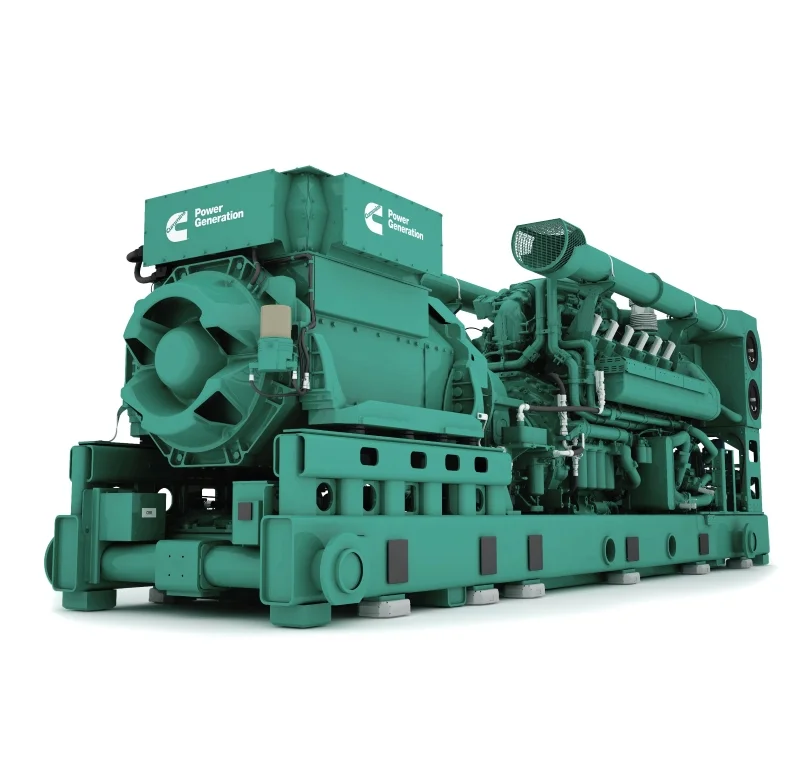

This new series represents a bold step into the gas arena for Cummins, showcasing new technology in a new engine that pushes new levels of efficiency, transient performance and gas variation well beyond former natural gas generators.
Target Industries
| Commercial & Institutional | Utility | Industrial |
|---|
| Airports | Landfills | Mining |
| Universities | Waste Water Treatment Plants | Manufacturing |
| Prison Bases | Grid Firming | Oil and Gas |
| Shopping Malls | Anaerobic Digesters | Greenhouses |
| | Independent Power Producers | Agriculture |
Wherever you are, Whatever your job, Cummins Expertise is Always On
Cummins offers customers unrivaled peace of mind when it comes to servicing and maintaining the HSK78G. Best-in-class aftermarket capabilities via your dedicated local contact, supported by a global system of service technicians, engineers and part distributions facilities in over 190 countries.
| | Genset Model | C1600N5CD | C1800N5CD | C2000N5CD | C1600N6CD | C1800N6CD | C2000N6CD |
|---|
| | Hz | 50 | 50 | 50 | 60 | 60 | 60 |
|---|
| Pipeline Natural Gas | ISO Electrical Efficiency % | 43.8 | 44.3 | 44.2 | 43.2 | 43.6 | 43.5 |
|---|
| | ISO Thermal Efficiency % | 47.7 | 46.8 | 45.9 | 47.3 | 46.3 | 45.4 |
|---|
| | ISO Fuel Consumption Kw | 3652 | 4066 | 4530 | 3707 | 4128 | 4599 |
|---|
| | Usable Heat Kw | 1740 | 1901 | 2077 | 1752 | 1912 | 2088 |
|---|
| | Minimum Methane # | 55 | 60 | 70 | 55 | 60 | 70 |
|---|
| | Data Sheet | D-6405 | D-6401 | D-6399 | D-6417 | D-6413 | D-6409 |
|---|
| Low BTU | ISO Electrical Efficiency % | 42.7 | 43.2 | 43.2 | 42.1 | 42.5 | 42.6 |
|---|
| | Energy Content, BTU/scf | 550 | 550 | 550 | 550 | 550 | 550 |
|---|
| | Dimensions (m)
(L X W X H) | 6.9 x 2.2 x 2.8 | 6.9 x 2.2 x 2.8 | 6.9 x 2.2 x 2.8 | 7.6 x 2.1 x 2.8 | 7.6 x 2.1 x 2.8 | 7.6 x 2.1 x 2.8 |
|---|
| | Temperature Rise (Deg. C) | 80 – 105 | 80 – 105 | 80 – 105 | 80 – 105 | 80 – 105 | 80 – 105 |
|---|
| | NOx emissions
(mg/Nmᶟ) | 250-500 | 250-500 | 250-500 | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 |
|---|
| | Data Sheet | D-6429 | D-6425 | D-6421 | | | |
|---|
| Low MN | | | | | | | |
|---|
* GCC only available on 50Hz
Peak Electrical Efficiency
- Up to 44.2 percent (50 Hz) and 43.5 percent (60 Hz), meeting ISO standards*
- Operates on a wider range of pipeline natural gas down to 70MN without impacting power output
- Automatic engine adjustments account for fuel quality changes and quick load-step performance – all without the need to calibrate or switch off the engine
- More stability, greater uptime and lower fuel costs lead to lower total cost of ownership
Game-Changing Fuel Flexibility
- High power density down to 40MN fuels
- Powered by a wide range of low-cost and free fuel sources that would otherwise be considered waste products
- New models manage low-BTU fuels more efficiently, delivering robust power with aggressive fuels down to very aggressive contaminant levels with less derating
- No space required for gas-cleaning systems
- Lower capital and operating expenses
Extreme Dependability
Full power capability up to 40oC (104F) with standard turbo offering and up to blistering 55oC (131F) with high ambient turbo offering accommodates the site’s environment, including its temperature, atmospheric and ground conditions
Market-Leading Combined Heat & Power Functions
Market-leading thermal efficiency at 47.1% and 2110 kW of thermal output for heating, cooling and steam generation provides significant environmental benefits by recovering CO2 and takes up less space, offering greater design flexibility
Industry Leading Service Cycles
- Industry’s longest major overhaul service cycle of 80,000 hours means high return on investment, keeping the operations and maintenance costs low
- Sophisticated predictive diagnostics available driven by innovative tools such as onboard spark plug sensors, NOx sensors, and real-time trend data collection provide minimum downtime and optimized standard maintenance costs
Global Compliance
- As low as 250 mg/Nm3 (0.5g/hp-hr) NOx without aftertreatment
- 30% load step at G1 with four steps to load providing superior load pickup and load rejection transient capabilities
60Hz Compliance
USA
- NSPS Compliant Capable
- UL Certified and Marked
- Compliant with:
- Electrical Code, NFPA 70
- Fuel Code, NFPA 37
- Standby Code, NFPA 110 Level and Type TBD
Canada
- CSA Certified and Marked
- CSA C22.2 No. 14 and No. 100
- Compliant with:
- Electrical Code, CSA C22.1
- Fuel Code, CSA B149
- Standby Code, CSA C282 and CSA Z32
50Hz Compliance
Australia
- Compliant with:
- Electrical Code, AS/NZS 3000
- Fuel Code, AS/NZS 3814
- Standby Code, AS/NZS 3009
EU and Asia
- CE Marked
- EU Grid Code Compliant and Certified
Russia
- EAC Marked – Russian Customs Union
Nigeria
